Merge Conflicts Aren’t Scary

Visualization Tool

Why is this happening to me?

Merge conflicts occur when two people are working on the same part of the same file because Git doesn’t know which version is correct. This is an awesome opportunity for you to collaborate with another writer on your team to identify the best way to proceed.

Don’t Fear the Conflict

Does <<<<< 02383434 give you nightmares? You are not alone. But don’t worry unlike scrimishes with your family on holidays merge conflicts are not hard to fix.

Take a deep breath we are going to help you learn to identify what git is telling you, how to fix the issue and how to bend git to your desired state.

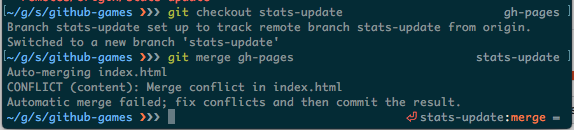

Reading a Conflict Message in the Terminal

Identifying a Merge Conflict in your Document

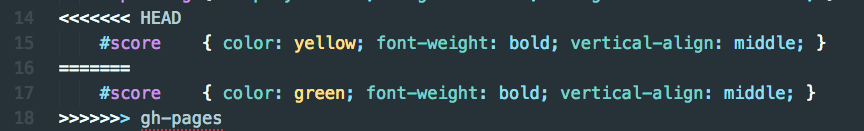

So, lets look at this image and identify what it is telling us:

• <<<<<<< HEAD So, HEAD, is a pointer, that points to a branch, a branch points to the latest commit. So, HEAD is currently pointing to the latest commit in the stats-update branch.
• ======= This is a seperator between the conflict that is occuring between the two branches.
• >>>>>>>>> gh-pages or >>>>>>>>>>>>>>>>>>>> a1f045 This is the branch that you are currently trying to merge into your branch that is causing the merge conflict to occur. This can sometimes display a random assortment of alphanumerical characters. This is in fact the SHA-1 hash associated with a commit and your computer is not breaking.

Aborting a Merge

Sometimes you may not want to deal with a merge conflict at all. If you have ever ran git status during a merge conflict you may have seen this line, (use "git merge --abort" to abort the merge). Running git merge --abort undoes everything that the merge attempted to do and places you back into the state your project was in prior to the atempted merge.

Fixing a Conflict

You can only resolve the merge conflict on GitHub, if your merge conflict is caused by competing line changes, such as when people make different changes to the same line of the same file on different branches in your Git repository. For all other merge conflicts, you must resolve the merge conflict locally on the command line.

Merge Conflicts on a Pull Request

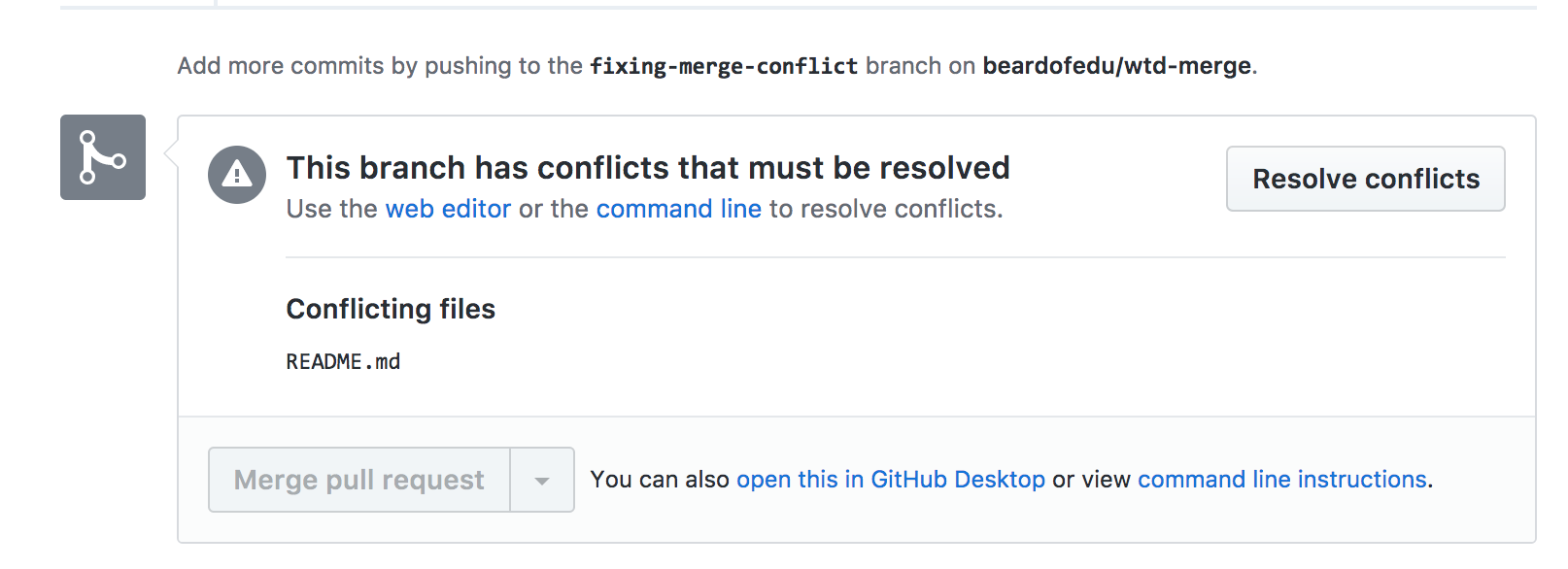

If you create a pr in Github, it may alert you to a merge conflict in the GUI.

There are tools in Github for resolving some, but not all merge conflicts. These tools closely mimic what happens on the command line tools.

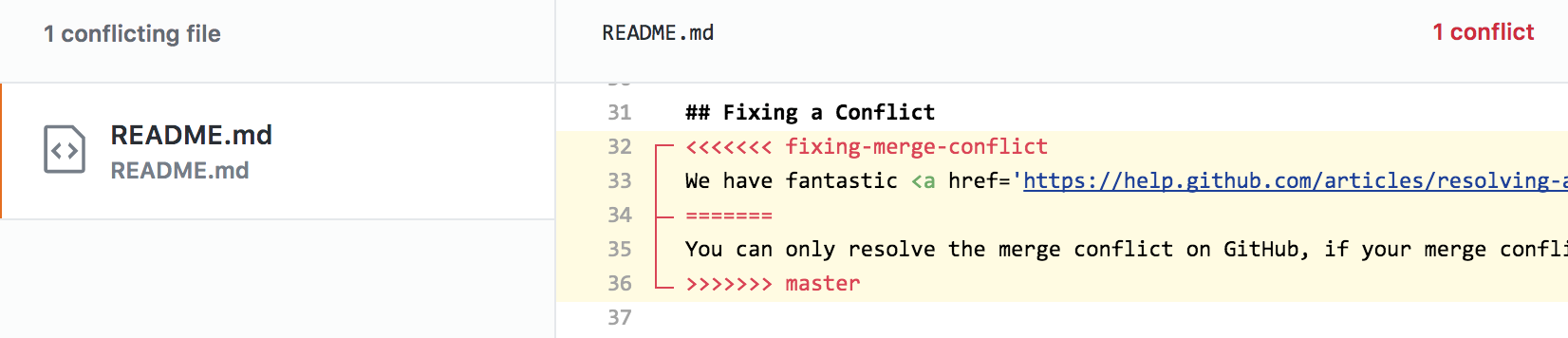

First we identify the conflicts and resolve them.

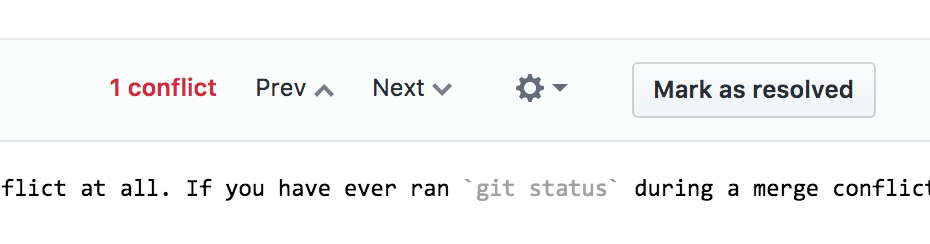

Mark the new implementation as resolved.

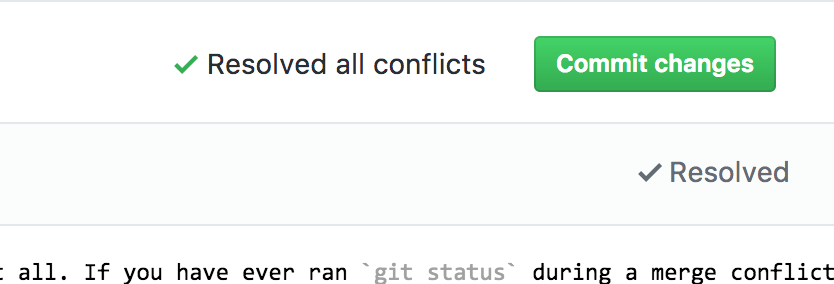

Commit the changes.

Know that this exists as it can be handy, but don’t be afraid to do this on the command line as some times it is your only path forward.

Exercise

The repository for example merge conflicts can be found here: https://github.com/beardofedu/wtd-games

Simple Merge Conflict

1. Fork the wtd-games repo from https://github.com/beardofedu/wtd-games
2. Clone the project locally.
3. cd into the repository and checkout the stats-update branch using: git checkout stats-update
4. Run git merge gh-pages and you will encounter a merge conflict.
5. Open the index.html file in your favorite text editor.
6. Lines 14-18 will have a merge conflict.
7. Select which color you want the score to be and remove the excess code. You should be left with a single line of code that looks like this: #score { color: yellow; font-weight: bold; vertical-align: middle; }
8. In the command line, enter git add index.html
9. In the command line, enter git coommit
10. Celebrate your victory over the merge conflict!

Advanced Merge Conflict

This exercise is going to use a new remote to pull changes from another repository.

1. First we need to create a new remote, enter: git remote add upstream https://github.com/beardofedu/wtd-games
2. In the command line, enter: git fetch upstream
3. In the command line, enter: git checkout -b shape-colors origin/shape-colors
4. In the command line, enter: git merge upstream/shape-colors, this will cause a merge conflict to occur, look for the merge conflict markers, pick the colors you want to use in the game, and save your work.
5. In the command line, enter: git add index.html
6. In the command line, enter: git commit
